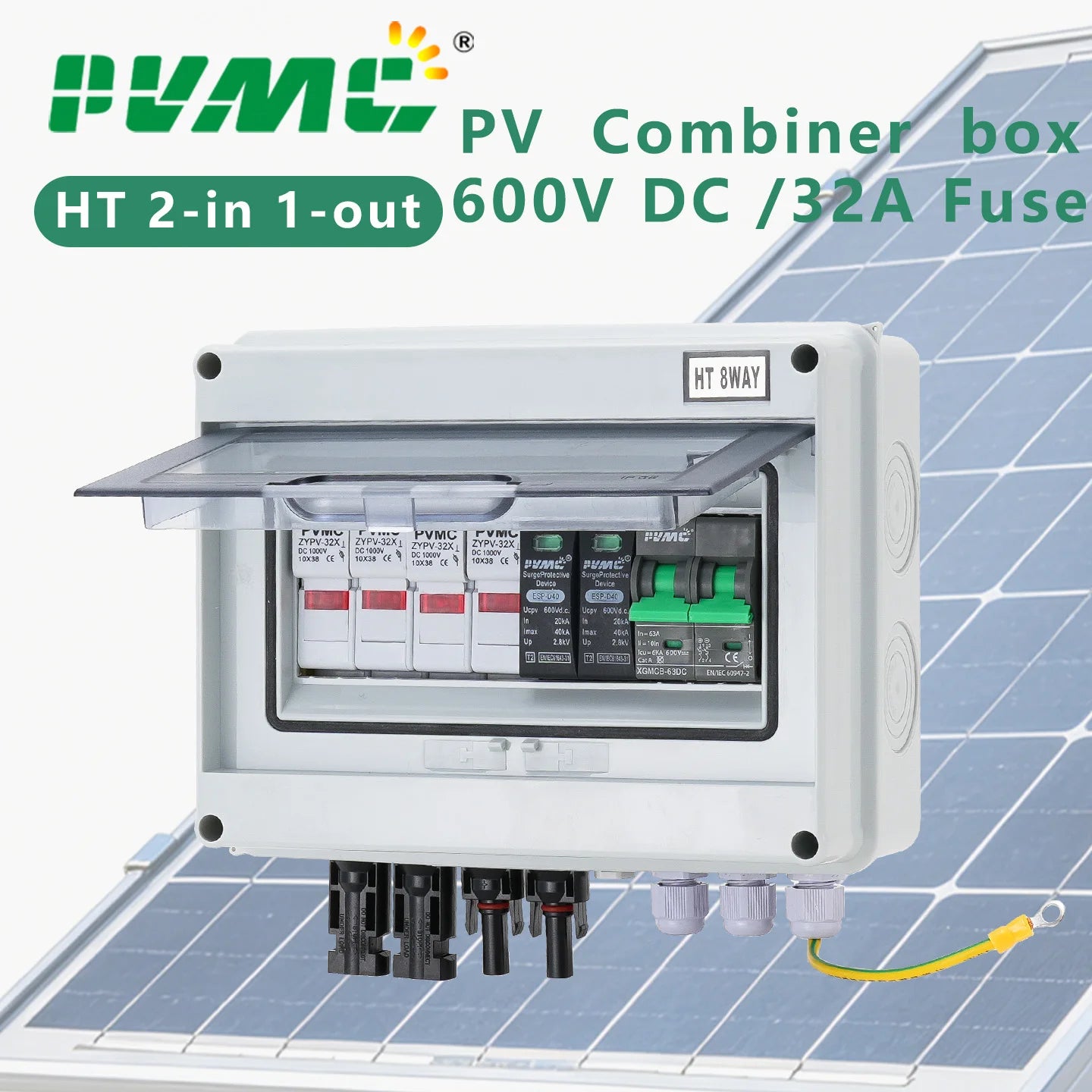

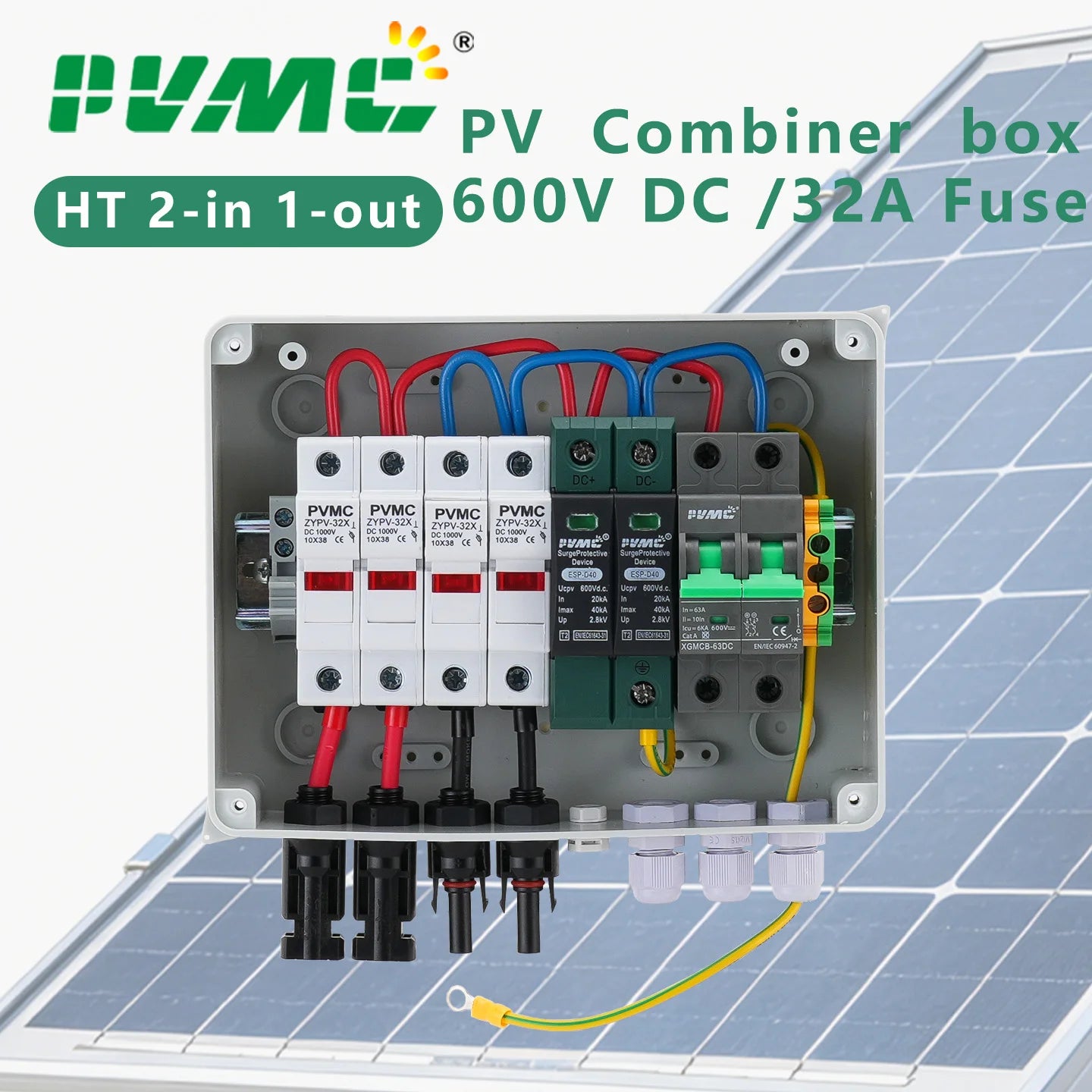

DC 600V 32A Solar PV Combiner Box 2 In 1 Out with SPD MCB Fuse IP65

solar PV combiner box 2 in 1 out DC 600V lightning protection fuse MCB SPD waterproof IP65 distribution box photovoltaic string combiner solar panel junction box surge protection

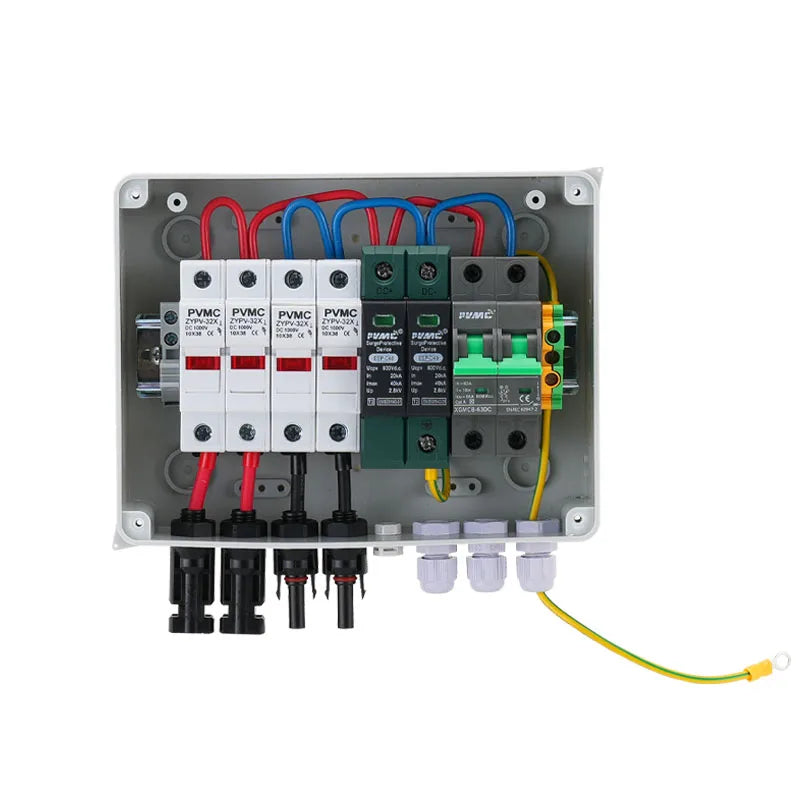

This DC solar PV combiner box joins two solar panel strings into one output. It comes ready wired with a DC fuse holder, a surge protection device and a DC breaker, so it protects your system from overload and lightning surges.

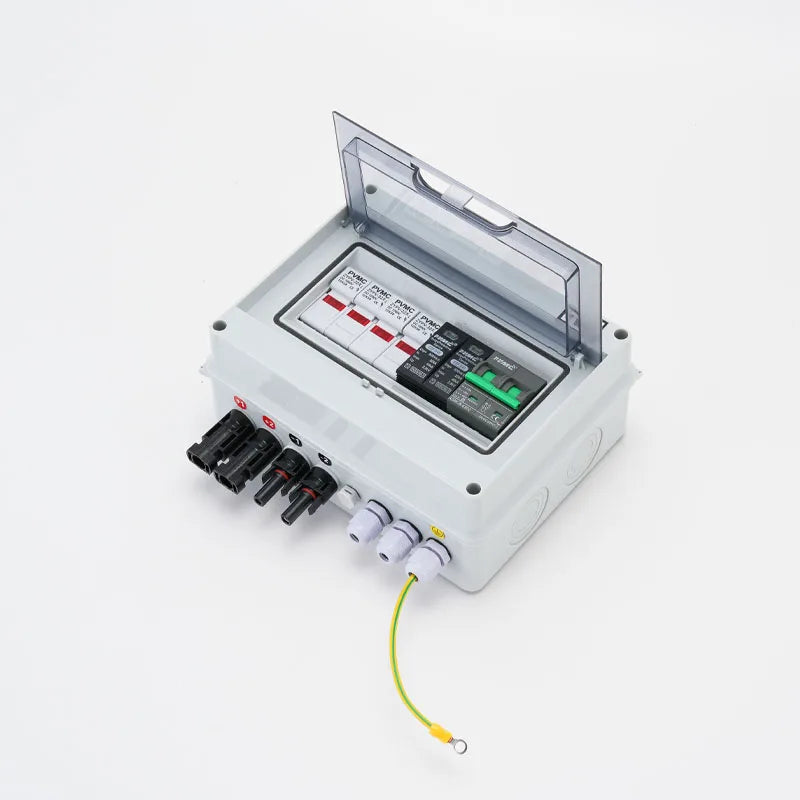

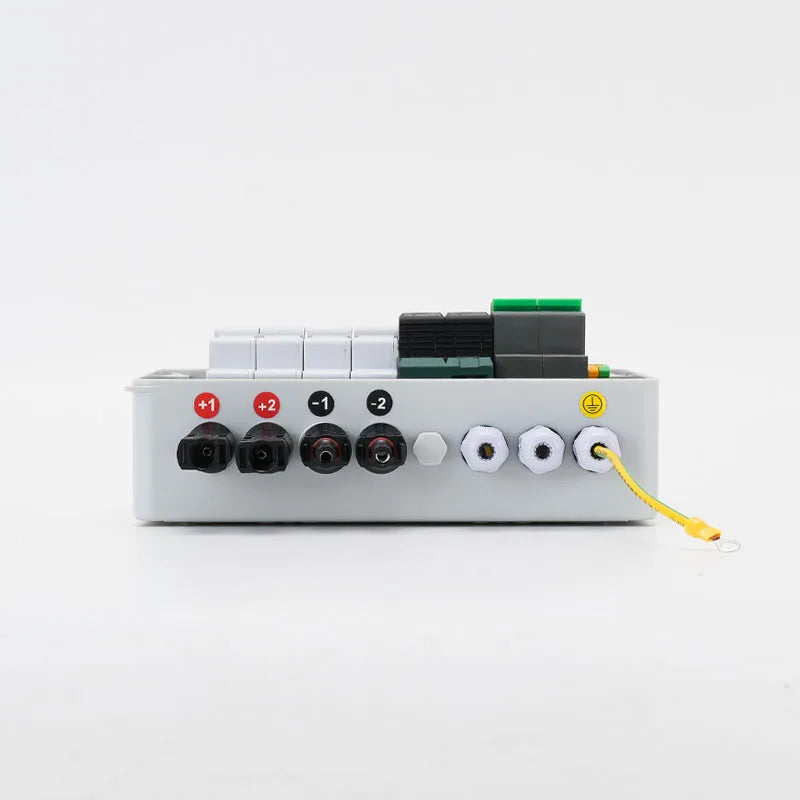

The box has MC4-style connectors for the inputs and cable glands for the output. A clear hinged window shows the protection devices, and the IP65 waterproof housing is built for outdoor mounting on roofs, walls and frames.

It suits off-grid and grid-tied solar systems, caravans, sheds and small home arrays. Choose the 15A or 32A version in the title to match your panel strings.

Combining strings in one protected box keeps the wiring neat and gives you a single point to isolate the array for maintenance. The fuse guards each string against overcurrent, the SPD diverts surges from lightning and switching, and the breaker lets you disconnect the output safely.

Check the voltage and current of your panels before choosing, and keep the total within the rated 600V DC and the amp rating of the box.

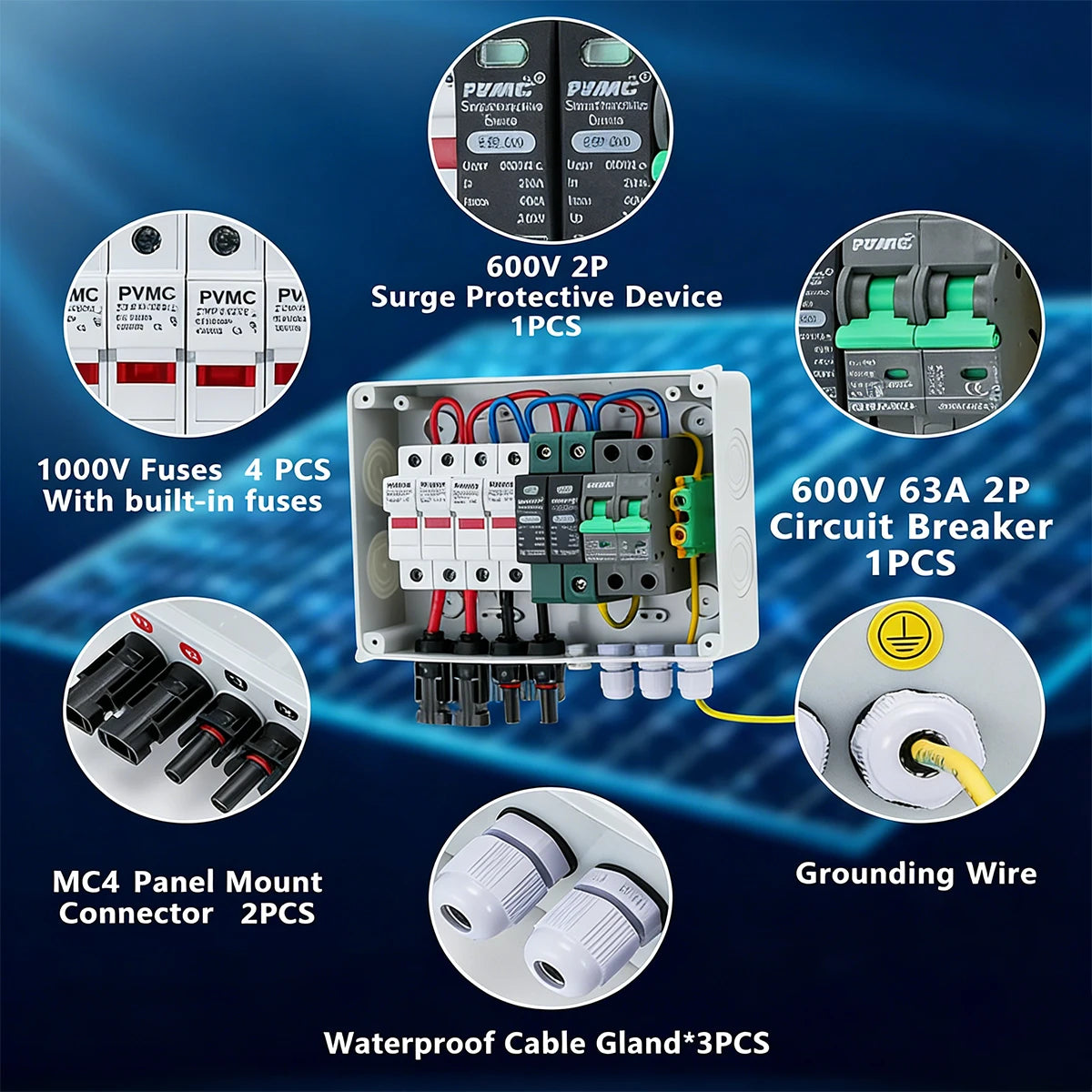

KEY FEATURES

- 2 in 1 out wiring
- 1000V DC fuse holder with fuse
- 2P DC SPD 600V surge protection
- 2P DC 600V MCB
- IP65 waterproof housing
- Clear cover window
- Pre-wired and ready to mount

WHERE IT HELPS

- Joining two solar strings
- Lightning and surge protection
- Off-grid cabins and sheds
- Roof and wall mounted solar systems

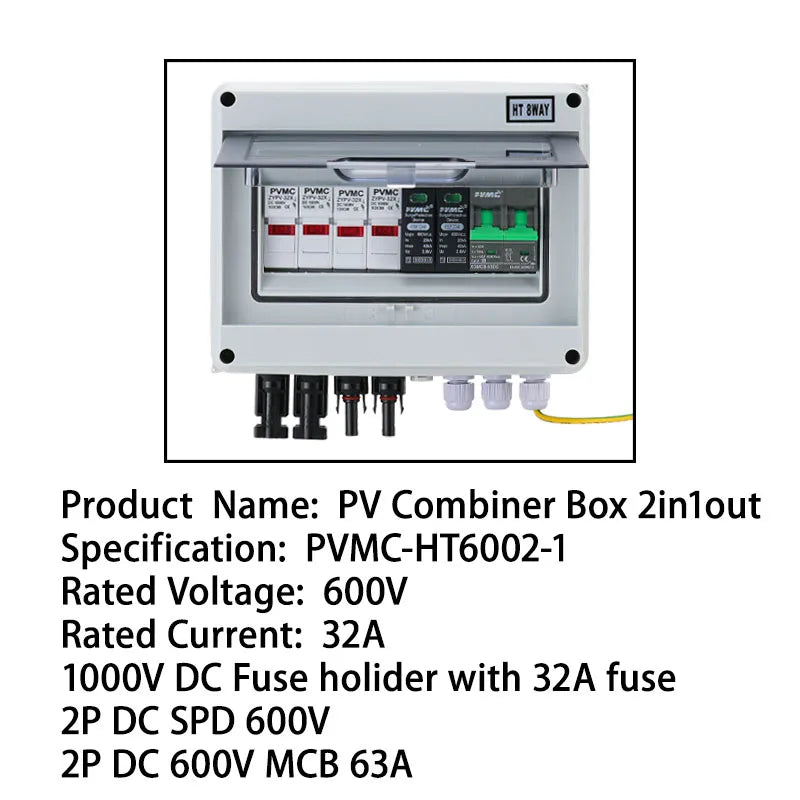

SPECIFICATIONS

- Rated voltage: DC 600V
- Rated current: 15A or 32A (as shown in the title)
- Model: PVMC-HT6002-1 (32A version)
- Inputs: 2, Output: 1
- Rating: IP65

CARE TIPS

- Installation should be done by a licensed electrician
- Isolate the system before opening
- Keep cable glands sealed

CONTENTS

- 1 x PV combiner box with fuse, SPD and MCB
